Unleash the Speed: Your Ultimate Guide to Fast Charging Technology

Want to charge your phone to 50% in just half an hour while you’re getting ready for work?

And no need to wait around, no need to worry about running out of battery.

Fast charging makes this possible.

It’s changing the way we power our devices, from phones and laptops to tablets and more.

What is Fast Charging?

Fast charging is a way to fill up a device’s battery faster than regular charging. Normally, a standard charger works at 5 volts and 1 ampere, giving about 5 watts of power. Fast charging increases the power by raising the voltage, the current, or both.

Fast charging doesn’t mean the battery fills at the same speed from start to finish. It starts fast and slows down as the battery fills. This keeps the battery safe from heat or damage.

Mechanism Behind Fast Charging Technology

Fast charging works by sending more power from the charger to the device. The idea is simple, but how it happens is quite smart.

More Power with Higher Voltage and Current

A regular charger sends a small amount of electricity—about 5 volts and 1 ampere. Fast chargers send more by raising the voltage to 9, 12, or even 20 volts and increasing the current to 2, 3, or 5 amperes. This gives much more power, so the battery charges faster.

But it’s not just about pushing more energy. The charger checks with the device first. They agree on a safe level that the battery can handle. Without this, the battery might overheat or get damaged.

Safe Charging Through Smart Communication

The charger and the device talk to each other using a set of rules called a protocol. The charger says, “I can give you more power.” The device replies, “I can safely take this much.” This stops the charger from sending too much energy.

Inside the device, the battery management system watches the temperature and charge level. If the battery gets too full or too warm, it slows down the charging speed to protect the battery and make it last longer.

Fast charging often works in two stages:

• Stage 1 (Fast Fill): High power is sent while the battery is low.
• Stage 2 (Top-Up): Power is reduced to avoid overcharging when the battery is nearly full.

Wireless Charging Works Differently; But...

Wireless charging doesn’t use cables. Instead, it uses a coil in the charger and a coil in the device. When the charger sends energy through its coil, it creates a magnetic field. The device’s coil picks up this energy and changes it back into electricity to charge the battery.

Fast wireless charging improves this process. It uses better coil designs and smarter power control to send more energy faster. New systems like Qi2 use magnets to keep the coils lined up, so more power reaches the battery safely.

How Fast Charging Has Changed Our Life?

Fast charging does more than speed things up. It makes our daily life smoother and easier in many small ways. Here’s how:

• Shorter Charging Times: No more waiting for hours. You can wake up, plug in your phone, and it’s ready while you brush your teeth or have a quick breakfast. This means less planning and more time for you.
• Less Worry: Forgot to plug in your laptop overnight? A 30-minute charge before your meeting can give you enough power to get through it. You can stay connected and productive even with a tight schedule.
• Power Anywhere: A fast charging portable charger is a lifesaver when you’re out and about. Whether you’re stuck in traffic, at a park, or traveling, you can top up your phone or tablet without hunting for a plug.
• Better Travel Convenience: Fast charging power banks are perfect for long trips. You can give your devices a quick boost during a layover or a long train ride. It keeps your plans running smoothly.
• Slimmer Devices: With fast charging, devices don’t need oversized batteries. This allows for sleeker designs that fit more comfortably in your pocket or bag, without giving up power.

A Look at Popular Fast Charging Protocols

Not all fast chargers work the same way. Different brands and devices use different systems, called protocols. These control how much power is sent and how the charger and device talk to each other.

Technology Name	Max Power Output	Typical Use Cases	Key Brands
USB Power Delivery (USB-PD 3.1 EPR)	Up to 240W	High-performance laptops, monitors, gaming devices	Apple, Dell, Lenovo, Google
Qualcomm Quick Charge (QC 5.0)	Over 100W	Select Android smartphones	ASUS, Xiaomi, OnePlus
Programmable Power Supply (PPS)	Up to 100W	Samsung Galaxy series, some laptops	Samsung, Google, Dell
Proprietary Fast Charging (e.g., VOOC, SuperCharge)	Typically 65–100W, with some models reaching 240W	Flagship smartphones from specific brands	OPPO, Vivo, Huawei

Some wireless charging systems also use protocols:

Qi (Baseline Power Profile - BPP):

• Introduced in 2010 by the Wireless Power Consortium (WPC).
• Provides up to 5W of wireless charging power.
• Commonly used in older smartphones and accessories.
• Requires precise alignment between device and charger.

Qi (Extended Power Profile - EPP):

• Enhancement over BPP, offering up to 15W of power.
• Improved charging efficiency and speed.
• Still relies on manual alignment for optimal charging.

Qi2 (Magnetic Power Profile - MPP):

• Announced in 2023, integrating magnetic alignment.
• Delivers up to 15W of charging power.
• Ensures perfect alignment between device and charger, enhancing efficiency and reducing heat.
• Supports both horizontal and vertical charging orientations.
• Compatible with a growing range of devices, including newer iPhones and select Android models.

How to Choose the Best Fast Charging Accessories for Your Device

The right combination of cables, chargers, power banks, and wireless chargers can make a big difference in speed, safety, and compatibility.

Cables

The charging cable plays a crucial role in transferring power efficiently and safely.

• Certified Cables Only: Look for cables that are certified for fast charging by trusted standards like USB-IF or manufacturer-specific certifications. They will often say “USB-PD compliant” or “supports Quick Charge” on the packaging.
• High-Quality Materials: Choose cables with thicker internal wires (typically 24-28 AWG for power conductors). This reduces resistance and allows higher current to pass through.
• Connector Type: For fast charging, USB-C to USB-C is the most common and supports higher power delivery (up to 240W). For devices with USB-A ports, make sure the cable is rated for the desired protocol. Understanding the differences between USB-A and USB-C can help you choose the right cable for your charging needs.
• Length Matters: Shorter cables (under 1 meter) usually deliver power more efficiently than longer ones, with less loss.

Chargers

The charger determines the amount of power sent to the device.

• Check Wattage Output: The charger’s output should match or exceed the device’s fast charging requirements. For example, a phone that supports 25W fast charging needs a charger that can provide at least 25W.
• Protocol Compatibility: Devices may require specific charging protocols like USB-PD, QC, PPS, or brand-specific technologies (VOOC, SuperCharge). Using a charger that supports the right protocol ensures optimal speed and safety.
• Multiple Ports Consideration: If you charge multiple devices at once, choose a charger with enough ports and power to handle the total load without reducing charging speed.
• Brand-Approved Chargers: For sensitive devices like laptops or high-end phones, using a charger from the same brand or an approved third party reduces risks of incompatibility or damage.

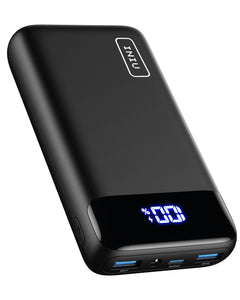

Power Banks

Power banks with fast charging capability are handy for on-the-go charging.

• Capacity (mAh): Choose a capacity that matches your needs. for short trips, a 10,000 mAh power bank is sufficient. For extended travel, consider 20,000 mAh or higher capacity models.
• Power Output (W): Look for a power bank that supports fast charging with output ratings of 18W, 30W, or higher, depending on your device. Check for labels like “PD 20W” or “QC 3.0.”
• Input Speed: Some power banks also support fast input charging, meaning they recharge themselves quickly using a high-wattage charger.
• Protocol Support: Make sure the power bank supports the fast charging protocol your device uses (e.g., USB-PD for iPhone and laptops, QC for many Android devices).

Wireless Chargers

Wireless charging offers convenience, but choosing the right one is key.

• Power Rating: Look for chargers labeled for "fast wireless charging" with clear wattage. While standard Qi chargers typically offer 5W-10W charging speeds, the new Qi2 standard delivers 15W fast charging speeds - twice as fast as traditional wireless charging. Some proprietary wireless charging solutions may offer higher wattages, but these aren't part of the universal Qi standard.
• Protocol and Compatibility: Ensure the wireless charger supports your device’s charging protocol. For example, iPhones use MagSafe or standard Qi. Android phones may use Qi or brand-specific enhancements like Samsung Fast Wireless Charging.
• Heat Management: Quality wireless chargers include cooling systems or thermal control to prevent overheating, which can affect both speed and safety.

Summary

Fast charging is more than just a time-saver. It’s a smart way to stay connected, stay productive, and stay ready for anything. From higher voltage chargers to intelligent battery systems, fast charging works behind the scenes to keep your devices powered up when you need them.

Whether you’re looking for a fast charger, a fast charge power bank, a fast charging portable charger, or the best wireless charging solution, understanding how the technology works helps you make the right choice.

5 FAQs on Fast Charging

Q1. Can I use a charger with higher wattage than my device requires?

Yes, you can use a charger with higher wattage as long as it supports the correct charging protocol (like USB-PD or QC). The device’s battery management system will only draw the amount of power it can safely handle. However, using a much higher-wattage charger won’t make charging any faster if the device limits the input.

Q2. How does fast charging affect battery lifespan?

Fast charging generates more heat, which can slowly reduce battery health over many cycles. However, modern devices use smart charging protocols and thermal management systems to control heat and avoid damage.

Q3. Are fast charging cables interchangeable between brands and devices?

Not always. While many fast charging cables use standard connectors like USB-C, some brands require cables that support specific protocols. For example, a cable certified for USB-PD may not support proprietary protocols like VOOC or SuperCharge. Almost all our power banks support both PD and QC protocols, offering flexible fast charging compatibility across different devices. For best results, check the cable's specs and your device's requirements.

Q4. Why does my phone charge slower when I use wireless fast charging compared to wired fast charging?

Wireless charging transfers power through electromagnetic fields, which is less efficient than direct wired connections. Energy loss happens during conversion, and coils may not align perfectly. However, the new Qi2 technology has revolutionized wireless charging - our Qi2 chargers deliver up to 15W fast charging, twice the speed of standard Qi chargers. While traditional wireless charging may be slower, these advanced solutions help bridge the gap between wireless convenience and charging speed.

Q5. What is the difference between PPS (Programmable Power Supply) and other fast charging protocols?

PPS is a smart protocol that dynamically adjusts voltage and current during charging. It helps maintain stable power delivery and reduces heat by matching the device’s real-time needs. This is different from fixed-output protocols like traditional QC, which provide set voltage/current levels. PPS is especially useful for high-power devices like laptops or phones with advanced battery management systems.
